4050X F Gynaecological Examination Table

Description

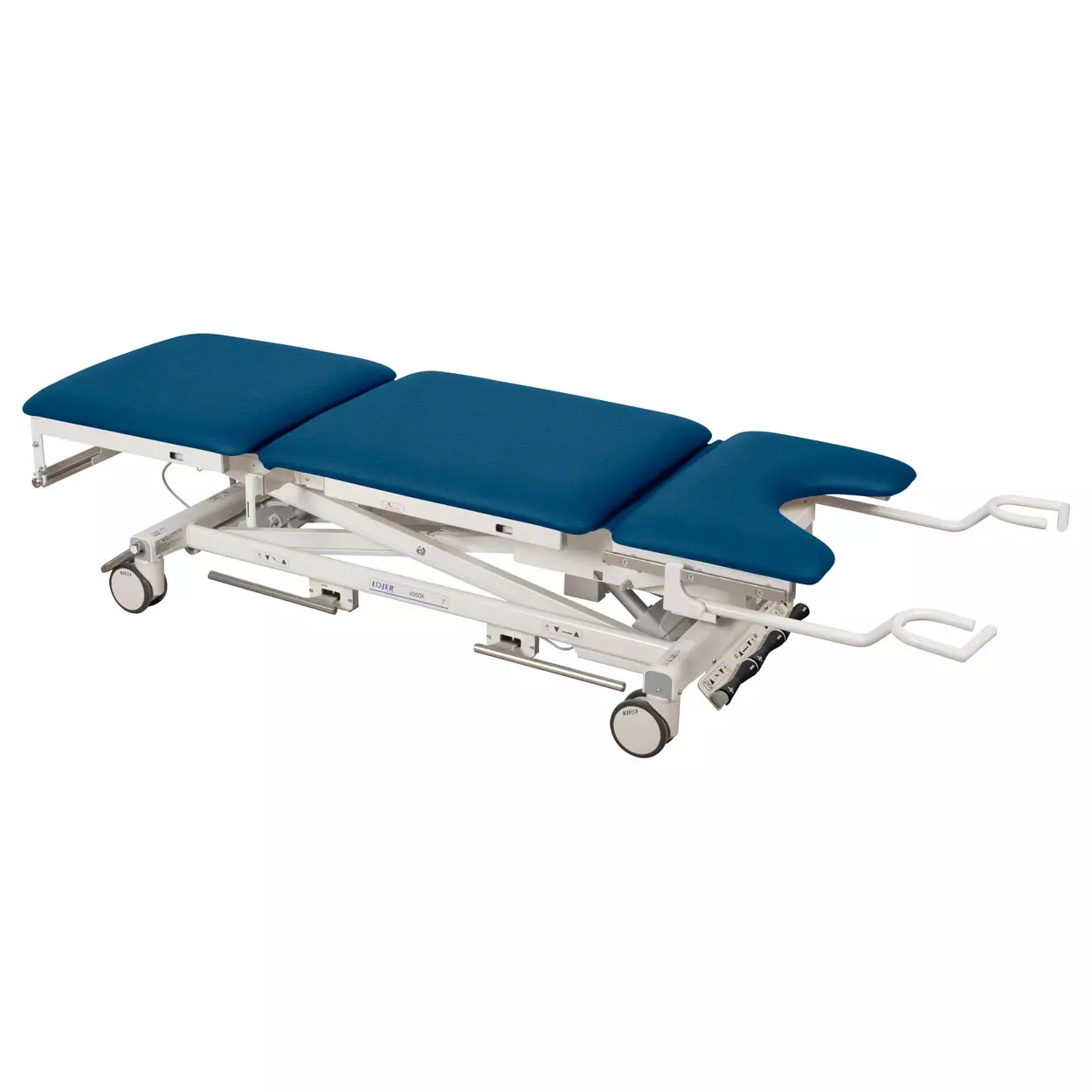

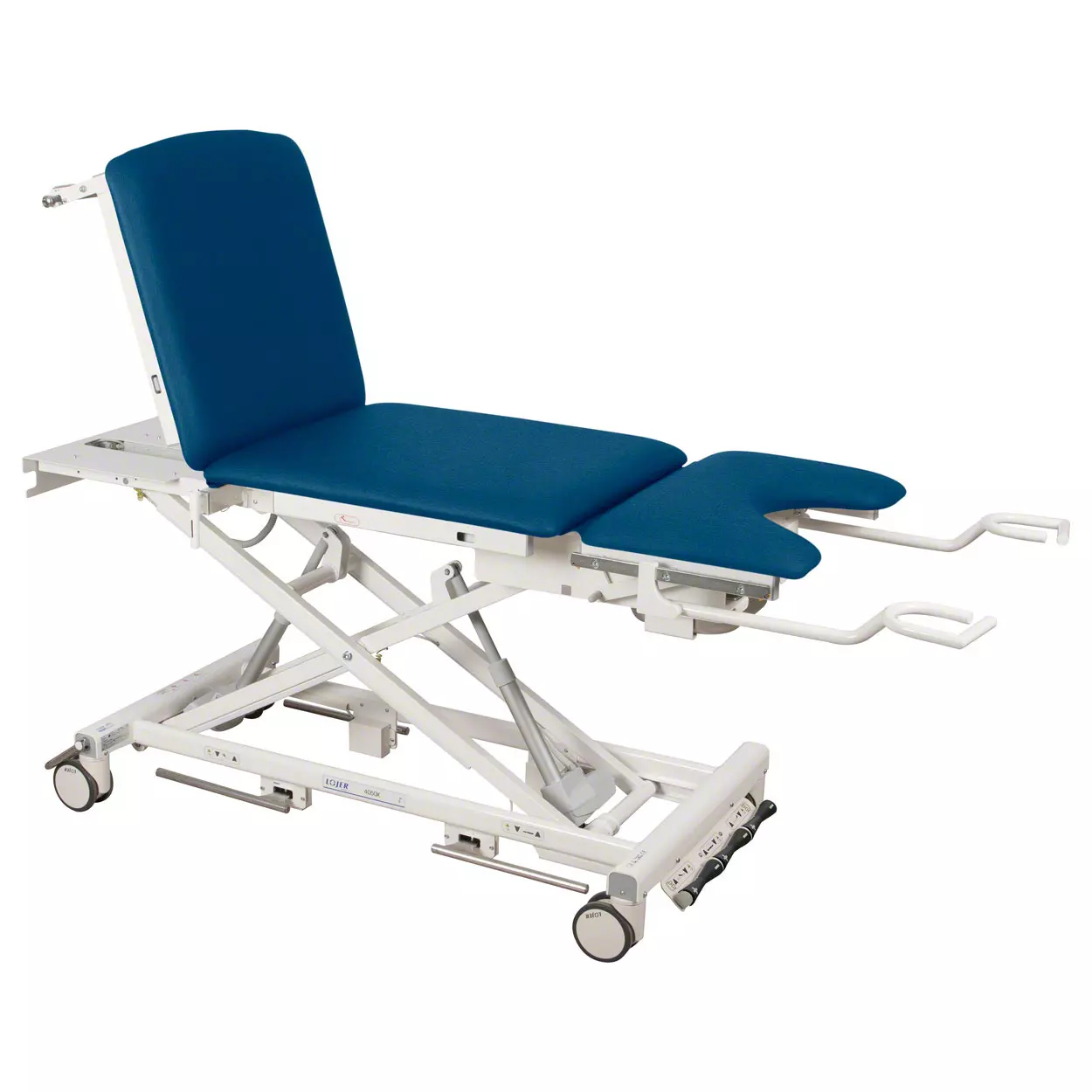

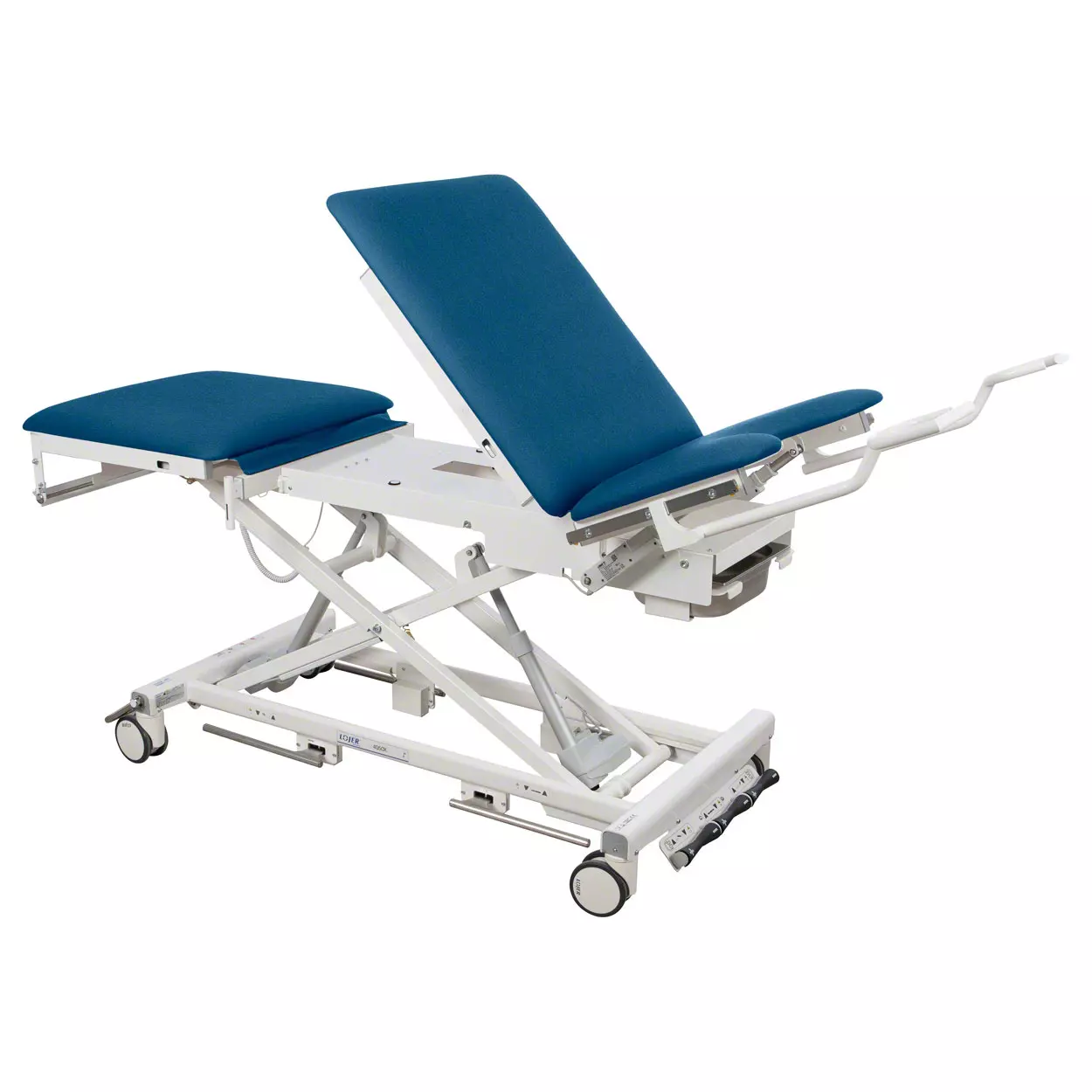

  The 4050X F is the flagship model in the 4050X platform. Its three-piece table top — with independently adjustable seat, middle and back sections, all electrically driven by six motors — allows the table to be configured for gynaecological examinations, minor procedures, and general consultations with a single piece of equipment.

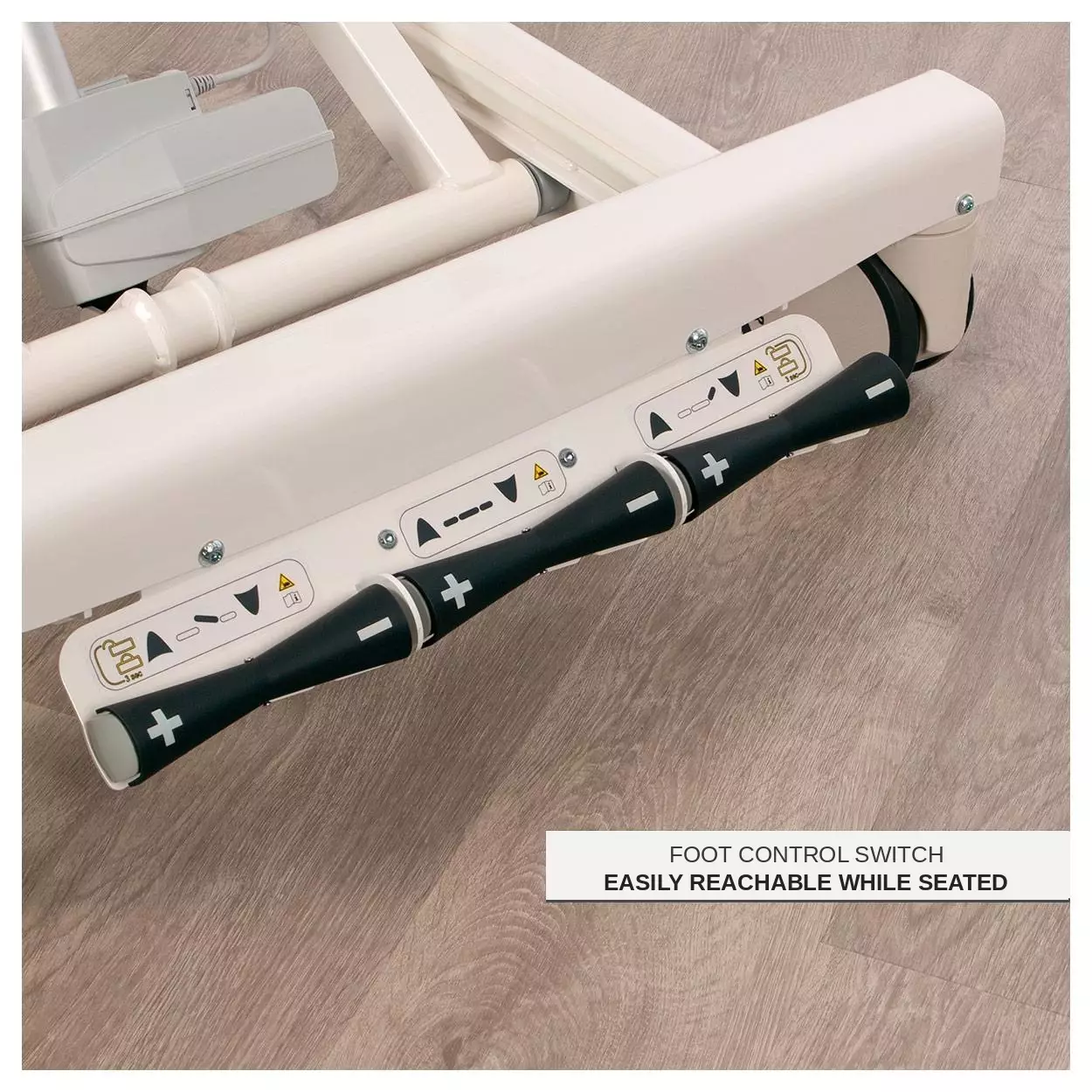

  What sets the 4050X F apart is the integrated gynaecological foot control set at the front of the table, which gives the clinician full control over height, seat and middle section adjustment entirely by foot, keeping both hands free for the patient. The hand control with a memory slot allows simultaneous movement of different sections and provides a safety lock function (press two pedals or hold buttons for 3 seconds). A two-piece hands-free adjustment bar can also be added to either side of the table as an option.

  In addition to the hands-free foot control, the 4050X F’s Future upholstery is an extremely durable and antimicrobial material — easy to clean, waterproof, and with cutting-edge antibacterial coating technology that remains effective even after repeated cleaning. This makes the 4050X F particularly well suited to high-turnover gynaecological clinics where hygiene is paramount.

  As standard, the table comes equipped with steplessly adjustable heel supports (no levers to operate), a gynaecological bowl that moves out of the way when not needed, accessory rails built into the seat section (2 pcs), and a paper roll stand and cutter. Safety is built into every part of the design: the table automatically rises if something is caught in the mechanism, and the angle between the seat and middle section is maintained at a minimum of 105° to protect the patient.

Key Features

• Six motors: electric seat, middle section, back section and height adjustment
• Integrated gynaecological foot control set for height, seat and middle section adjustment — entirely hands-free from the front of the table

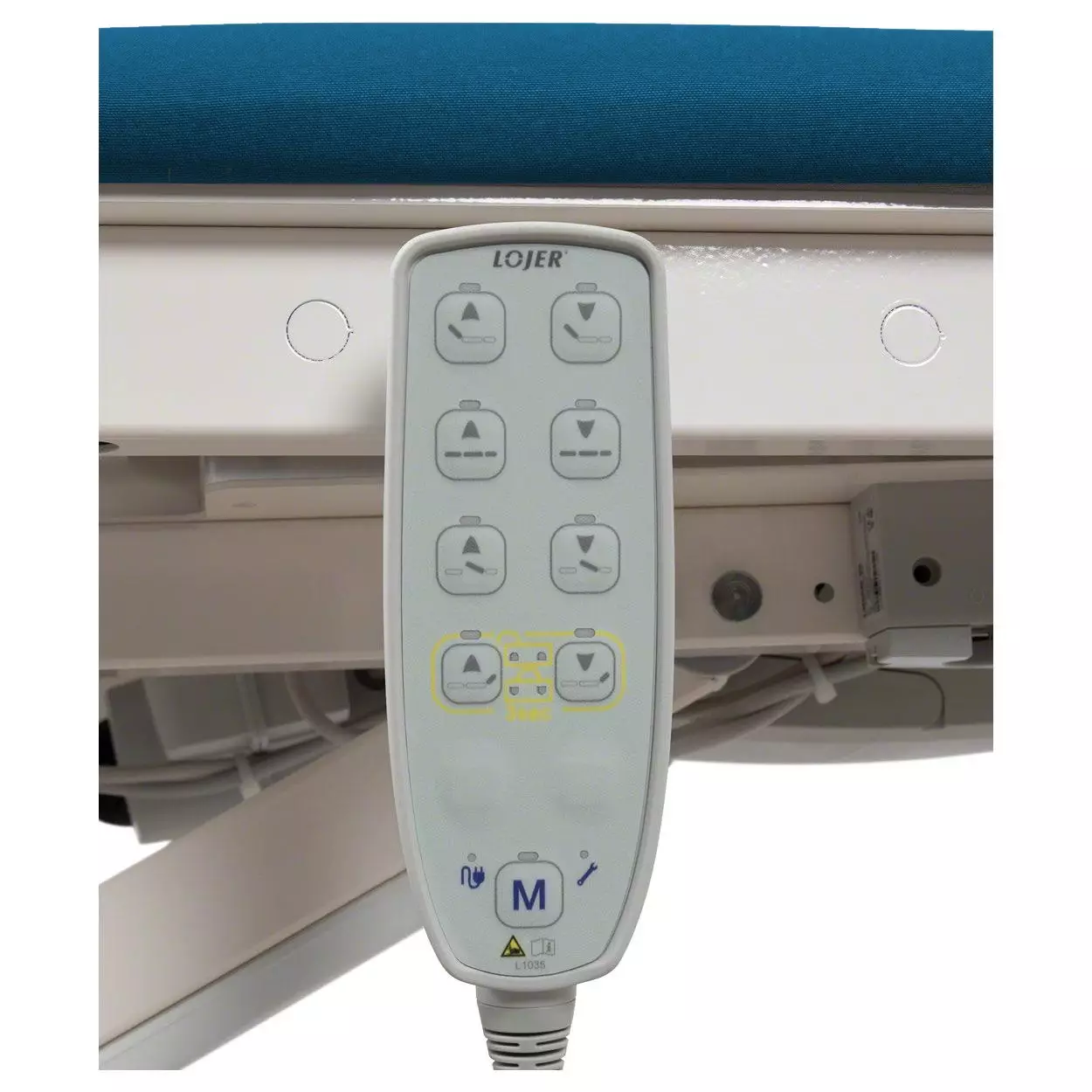

• Hand control with memory slot and simultaneous multi-section movement
• Safety lock function: press two foot pedals or hold hand control buttons for 3 seconds

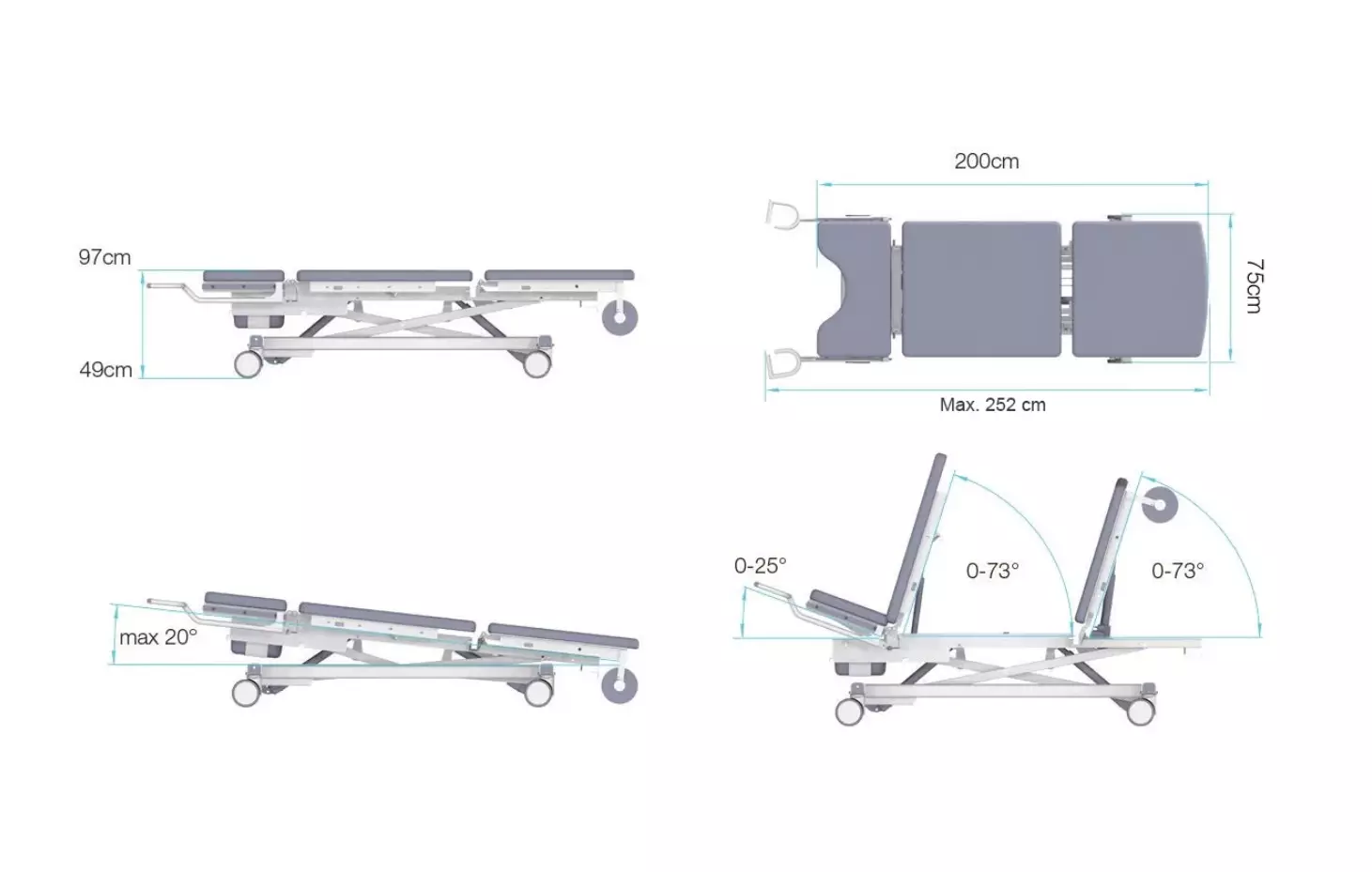

• Electric seat adjustment, 0–25°
• Electric middle section adjustment, 0–73°
• Electric back section adjustment, 0–73° (via hand control)
• Steplessly adjustable heel supports, standard — no levers to operate

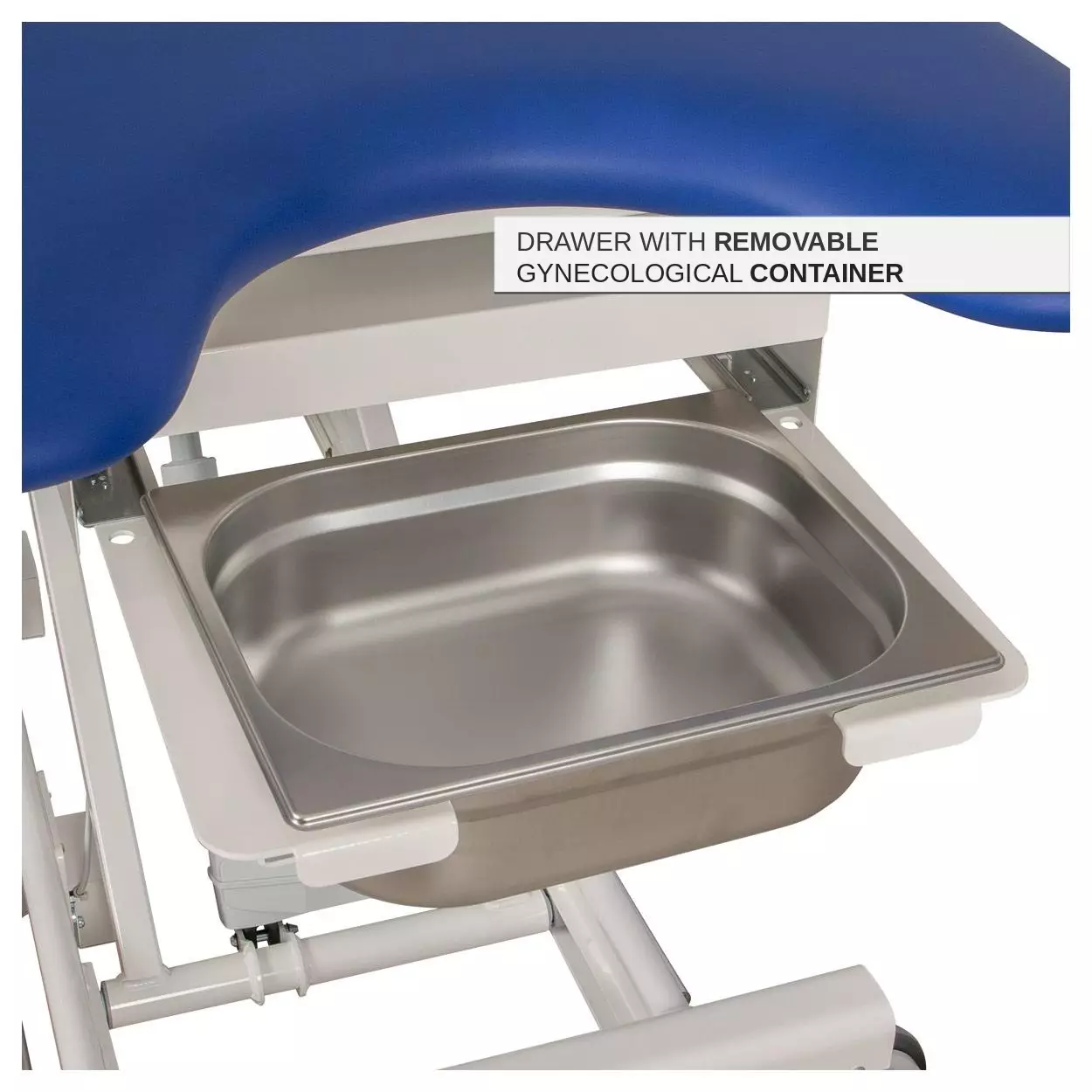

• Integrated gynaecological bowl, standard — moves out of the way when not needed

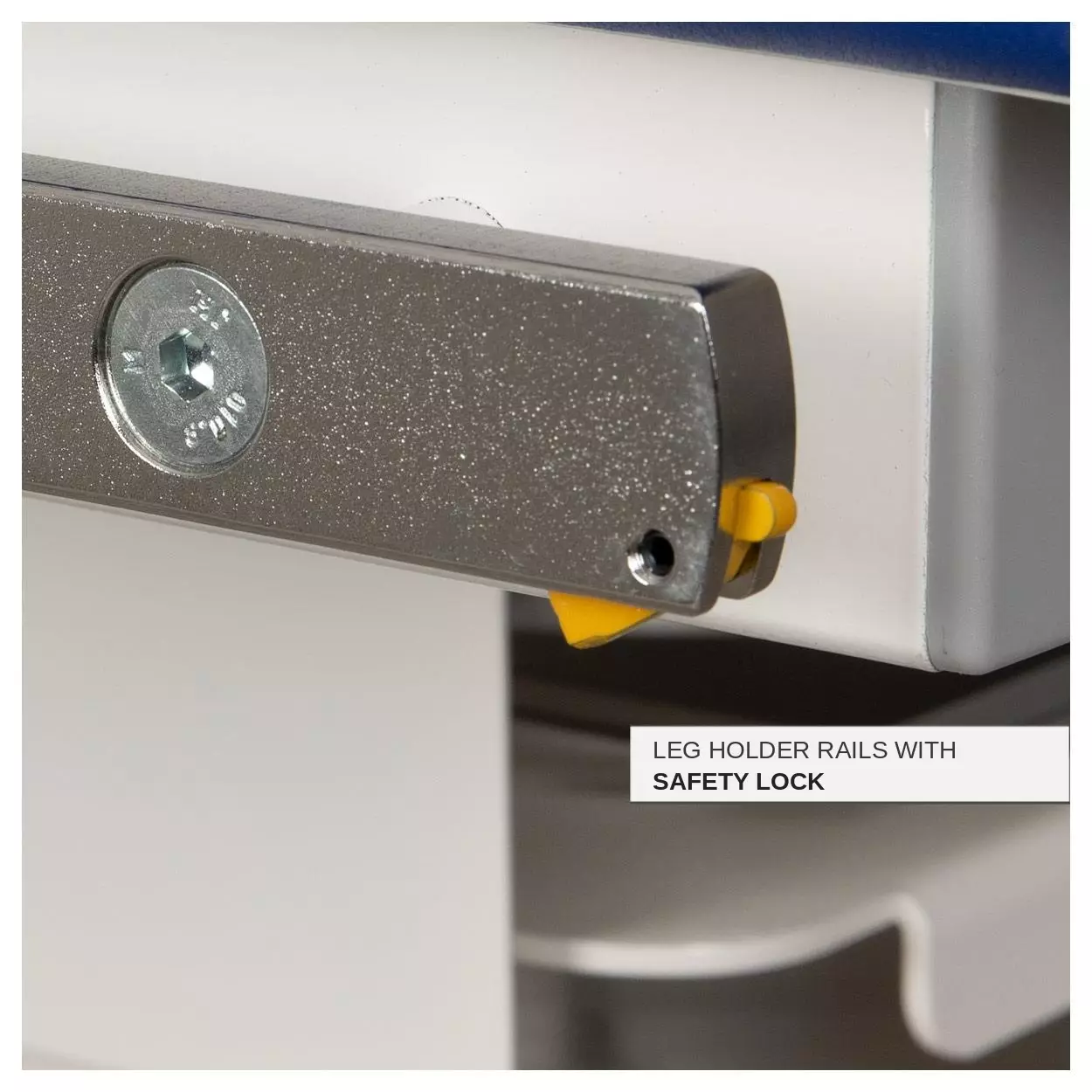

• Accessory rails built into the seat section (2 pcs), standard

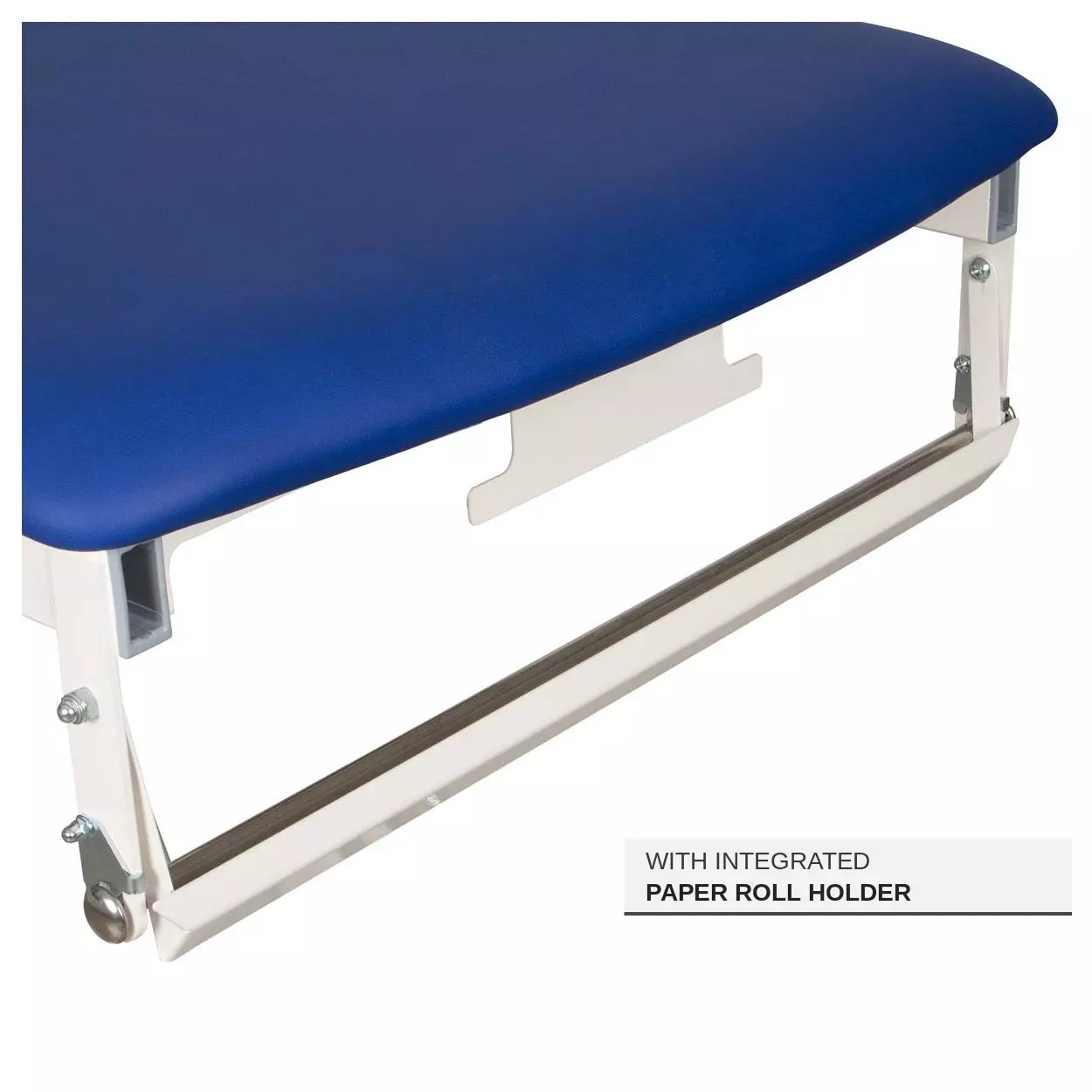

• Paper roll stand and cutter, standard
• Safety feature: angle between seat and middle section maintained at min. 105°
• Safety feature: table rises automatically in emergency situations
• Motors lower using gravity in emergency situations
• Antimicrobial Future upholstery — antibacterial, waterproof, easy to clean
• Wide height adjustment range, 49–97 cm
• 210 kg safe working load (SWL)
• Manufactured in Finland (Lojer Oy)

Designed For

• Gynaecological examinations requiring full hands-free adjustment
• Minor procedures and general examinations
• High-turnover clinics needing superior hygiene and infection control
• Facilities wanting the most complete feature set on the 4050X platform

Available Options & Accessories for the 4050X F

Castors

• Central locking twin castors, Ø125 mm — standard

Adjustment

• Two-piece hands-free adjustment bar for height and back section (both sides), with hand control
• Electric Trendelenburg / anti-Trendelenburg adjustment, built into the standard hand control, battery included

Voltage / power cord

• EU 230V
• UK 230V
• US 100/120V
• CH (Swiss)
• CN 220–240V

Calf supports (choose one or both)

• Pair of calf supports, white plastic, with rapid clamps and fastening straps (for minor procedures)
• Pair of calf supports, black moulded cushion, with rotation clamps and fastening straps (for long-term procedures)

Factory-installed options

• Battery for back-up power (recommended if electric Trendelenburg is not chosen)
• Foot control for height and back section, with hand control (not needed if the hands-free adjustment bar is fitted)

Other accessories

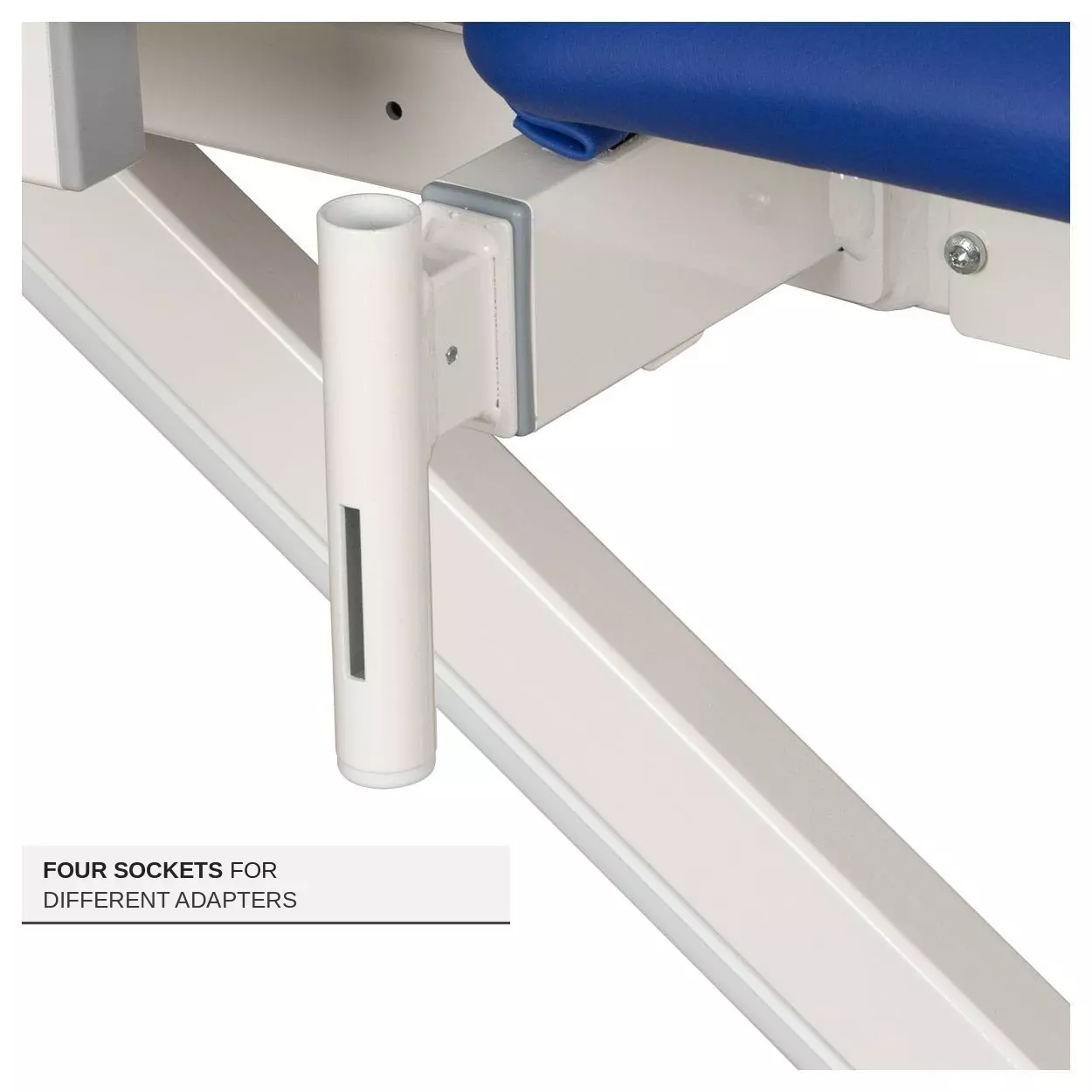

• Accessory rail (4 possible fitting positions)
• Side rail (max. 2 pieces)
• IV-pole, straight or bent (adapter required, sold separately)

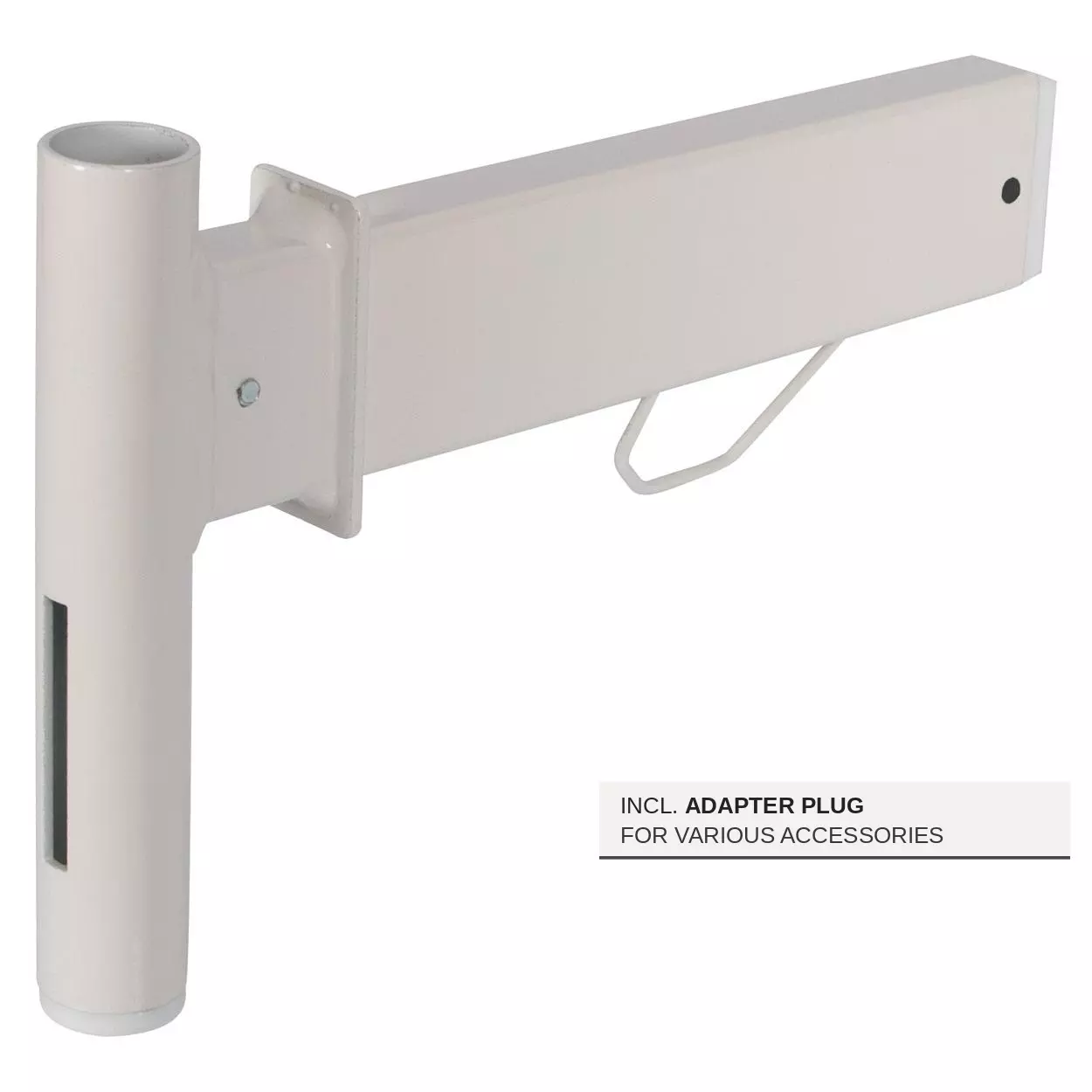

• Adapter for IV-stand
• Rapid rod clamp, Ø20 mm aluminium, for attaching items to the accessory rails
• Anaesthesia frame (uses the same adapter as the IV-pole)
• Push handles, pair
• Additional gynaecological bowl, 6L with drainage
• Examination lamp, Lojer adapter or accessory rail attachment
• Hand / arm support, height and angle adjustable (max. 2 pcs)
• Neck cushion

Note: the individually locking Ø125 mm castors, the Ø150 mm twin castor options, the extended range of Future upholstery colours, and the electrically conductive Mano upholstery are not available on this configuration.

Upholstery

The 4050X F comes standard in Future upholstery — an environmentally friendly, fire-safety tested material with a slightly pearlescent finish and antibacterial, antimicrobial, and mould-proofing properties. Its cutting-edge coating technology remains on the surface and does not wear out even after repeated cleaning, preventing the growth of odour- and stain-causing bacteria and prolonging the service life of the upholstered parts. Future is 3–6 times more durable than traditional faux leather (Martindale over 300,000 cycles) and highly resistant to cracking, splitting, and loss of flexibility.

Standard colour options:

• Silver
• Falls
• Tomato
• Beach

Available as an upgrade (Nature upholstery — environmentally friendly artificial leather):

• Night
• Sea
• Stone
• Haze
• Sand

Please note: due to variations in screen display, actual vinyl colours may differ slightly from digital representations.

Why Choose the 4050X M Gynaecological Examination Table

The 4050X F is the right choice for any facility that needs the most complete, most hygienic gynaecological examination table available — with full hands-free adjustment from the front of the table, a memory-slot hand control, electric seat adjustment, and antimicrobial upholstery as standard. For practices that don’t require the electric seat adjustment, memory slot, or integrated foot control set, the 4050X M offers the same platform in a simpler configuration.
